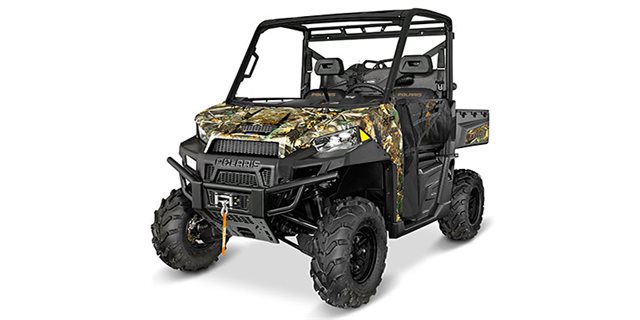

2016 Polaris Ranger XP 900 EPS Hunter Edition

Stock #U2S149
Your Price: $8,999
Click for Best Price
Hi, my name is and I'm interested in this 2016 Polaris Ranger XP 900 EPS Hunter Edition . I'm in the area and you can reach me at or by phone at
  • Status:
    Pre-Owned
  • Vehicle:
    2016 Polaris Ranger XP 900 EPS Hunter Edition
  • VIN:
    4XARTE876GB344466
  • Model Number:
    R16RTE87A9
  • Mileage:
    2,882 miles
  • Stock Number:
    U2S149
  • Title:
    Clear
  • Location:
    Southern Illinois Motorsports
  • Warranty:
    As Is

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Brand:
    On-Demand™
  • Driveline Type:
    Selectable 4X2 / AWD
  • Limited Slip Differential Location:
    Center
  • Number Of Driveline Modes:
    3
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    3.66
  • Bore (mm):
    93
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.5
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    875
  • Displacement (ci):
    53.4
  • Engine Brand Name:
    ProStar™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Longitudinal Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    68
  • Horsepower (kW):
    50.7
  • Starter:
    Electric
  • Stroke (in):
    2.54
  • Stroke (mm):
    64.4
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    3
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    453.6
  • Bed Capacity (lbs.):
    1000
  • Bed Height (in):
    11.5
  • Bed Height (mm):
    290
  • Bed Length (in):
    36.5
  • Bed Length (mm):
    930
  • Bed Volume (ft3):
    13.1
  • Bed Volume (m3):
    0.37
  • Bed Width (in):
    54
  • Bed Width (mm):
    1370
  • Cargo Bed Material:
    Polyethylene
  • Cargo Bed Tilt:
    Yes
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Double A-Arm
  • Front Travel (in):
    10
  • Front Travel (mm):
    254
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    10
  • Rear Travel (mm):
    254

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    610
  • Dry Weight (lbs):
    1342
  • Engine Displacement to Weight (cc):
    0.65
  • Fuel Capacity (gal):
    10
  • Fuel Capacity (l):
    37.9
  • Ground Clearance (in):
    12
  • Ground Clearance (mm):
    305
  • Height (in):
    76
  • Height (mm):
    1930
  • Length (ft):
    9.71
  • Length (ft/ft):
    9
  • Length (ft/in):
    8.5
  • Length (in):
    116.5
  • Length (mm):
    2960
  • Payload Capacity (kgs):
    680.4
  • Payload Capacity (lbs):
    1500
  • Towing Capacity (kgs):
    907.2
  • Towing Capacity (lbs):
    2000
  • Turning Radius (ft):
    13.4
  • Wheelbase (in):
    81
  • Wheelbase (mm):
    2060
  • Width (in):
    60
  • Width (mm):
    1520

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2
  • Weight (kgs):
    2041.2
  • Weight (lbs):
    4500
  • Winch Brand Name:
    Polaris

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    Polaris Variable Transmission (PVT)
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Polaris PXT
  • Front Tire Diameter (in):
    26
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Polaris PXT
  • Rear Tire Diameter (in):
    26
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Polaris PXT
  • Wheels Composition:
    Steel
